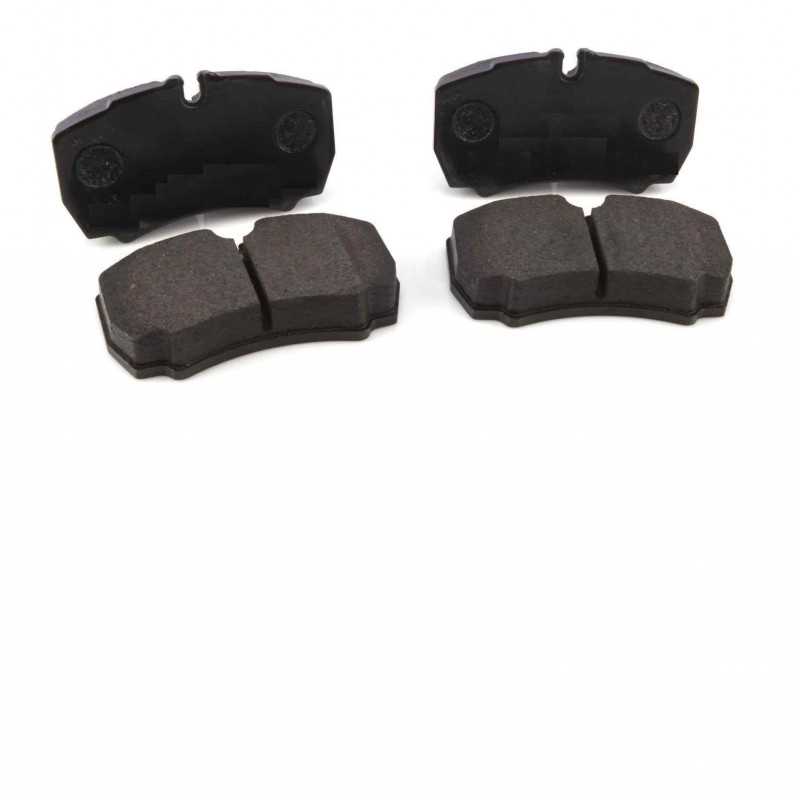

Jeu de 4 plaquettes de frein arrière Ford Transit Iveco Daily 3 4 5 6
Ne comprend pas :
Contacteur d'usure, plaquettes de frein
Emplacement sur le véhicule :
A l'arriere
Informations techniques :
Haut.: 63,8 mm;Épais.: 20,3 mm;Long.: 109,5 mm
Se monte sur les véhicules suivants :
FORD
TRANSIT Autobus/Autocar 2.2 tdci [rwd] 135cv
TRANSIT Camionnette 2.2 tdci [rwd] 125cv, 2.2 tdci [rwd] 155cv, 2.4 tdci [rwd] 115cv,
2.4 tdci [rwd] 140cv, 3.2 tdci [rwd] 200cv
TRANSIT Camion plate-forme/Châssis 2.2 tdci [rwd] 155cv, 2.4 tdci [rwd] 140cv, 3.2 tdci [rwd] 200cv
IVECO
DAILY III Camionnette/Break 35 s 9 v,35 c 9 v 84cv, 35 s 11 v,35 c 11 v 106cv,
35 s 13 v,35 c 13 v 125cv, 29 l 10 v 95cv, 29 l 12 v 116cv, 35 s 15 v, 35 c 15 v 146cv,
35 s 10 95cv, 35 c 12 v, 35 s 12 v 116cv, 35 s 9 v 90cv, 29 l 14 136cv, 35 c 14,
35 s 14 136cv, 35 c 17, 35 s 17 166cv, 2.8 cng 106cv
DAILY III Camion plate-forme/Châssis 29 l 11 105cv, 35 s 9,35 c 9 84cv, 35 s 11,
35 c 11 106cv, 35 s 13,35 c 13 125cv, 35 c 15 146cv, 29 l 10 95cv, 29 l 12 116cv, 35 c 10 v,
35 s 10 v 95cv, 35 c 12 , 35 s 12 116cv, 29 l 14 136cv, 35 c 9, 35 s 9 90cv, 35 c 14,
35 s 14 136cv, 35 c 17, 35 s 17 166cv
DAILY IV Camionnette/Break 29l10 v 95cv, 29l14 c, 29l14 c/p, 29l14 v, 29l14 v/p 136cv,
29l12 v, 29l12 v/p 116cv, 35c10, 35s10 95cv, 35c12 v, 35c12 v/p, 35s12 v, 35s12 v/p 116cv,
35c18 v, 35c18 v/p, 35s18 v, 35s18 v/p 176cv, 35s14 c, 35s14 c/p, 35s14 v, 35s14 v/p, 35c14 v,
35c14 v/p 136cv, 35c14 gv, 35c14 gv/p, 35s14 gv, 35s14 gv/p 136cv, 35c14 v, 35c14 v/p, 35s14 v,
35s14 v/p 140cv, 35c17 v, 35c17 v/p, 35s17 v, 35s17 v/p 170cv, 35c13 v, 35c13 v/p, 35s13 v,
35s13 v/p 126cv, 35c11 v, 35s11 v 106cv
DAILY IV Camion basculant 35c17 k, 35c17 dk, 35s17 k, 35s17 dk 170cv, 35s14 k, 35s14 dk 136cv,
35c13 k, 35c13 dk, 35s13 k, 35s13 dk 126cv, 35c11 k, 35c11 dk, 35s11 k, 35s11 dk 106cv, 35c14 k,
35c14 dk, 35s14 k, 35s14 dk 140cv
DAILY IV Camion plate-forme/Châssis 29l10 95cv, 29l12 116cv, 29l14 136cv, 35c10, 35s10 95cv, 35c12,
35s12 116cv, 35c18, 35s18 176cv, 35c14, 35s14, 35s14 /p 136cv, 35c17, 35c17 /p, 35s17, 35s17 /p,
35s17 d 170cv, 35c13, 35c13 /p, 35s13 d, 35s13, 35s13 /p 126cv, 35c14, 35c14 /p, 35s14, 35s14 /p,
35s14 d, 35s14 d/p 140cv, 35c14 g, 35c14 g/p, 35s14 g, 35s14 g/p, 35c14 gd, 35s14 gd 136cv, 35s17 w,
35s17 wd 170cv, 35c11, 35s11, 35s11 d, 35s11 /p 106cv
DAILY IV Autobus/Autocar 35s14, 35s14 /p 136cv, 35s14 g 136cv
DAILY V Camion plate-forme/Châssis 26l11, 26l11d, 35c11d, 35s11, 40c11 106cv, 29l13, 29l13d, 35c13d,
40c13 126cv, 35c17, 35c17d, 35s17, 40c17, 45c17, 50c17, 60c17, 70c17 170cv, 35c21, 35s21, 40c21,
45c21, 50c21, 60c21, 70c21 205cv, 29l15 v, 35c15l v, 40c15l v, 50c15l v 146cv
DAILY V Camion basculant 35c15k, 35s15dkp, 50c15k, 60c15k, 65c15dk, 70c15k 146cv, 35c17k, 35s17dkp,
50c17k, 65c17dk 70c17k 170cv, 35c11k, 35s11dkp 106cv, 35c13k, 35c13dkp 126cv, 35s21dkp 205cv
DAILY V Camionnette/Break 35c17 v, 35s17 v, 40c17 v, 45c17 v, 50c17 v, 60c17 v, 170cv, 29l11 v,
35c11 v, 35s11 v, 40c11 v 106cv, 29l13 v, 35c13 v, 35s13 v, 40c13 v, 40s13 v 126cv, 29l15 v, 35c15l v,
40c15l v, 50c15l v 146cv, 35c21 v, 35s21 v, 40c21 v, 45c21 v, 50c21 v 204cv
DAILY VI Camion plate-forme/Châssis 33s11, 35s11, 35c11 106cv, 33s13, 35s13, 35c13 126cv, 35s15, 35c15,
40c15, 50c15, 65c15, 70c15 146cv, 35s17, 35c17, 40c17, 45c17, 50c17, 55c17, 65c17, 70c17 170cv, 35s21,
35c21, 40c21, 50c21, 65c21, 70c21 205cv, Natural power 35s14, 35c14, 40c14, 50c14, 65c14, 70c14 136cv,
33s15, 35s15, 35c15 146cv, 35s17 hw, 35s17 hwd, 55s17 hw, 55s17 hwd 4x4 170cv, 33-120, 35-120 116cv,
33-140, 35-140 136cv, 33-160, 35-160 156cv, 33-180, 35-180, 52-180, 60-180, 70-180, 72-180 180cv,
35-210, 40-210, 50-210, 65-210, 70-210, 72-210 204cv
DAILY VI Camionnette/Break 33s11, 35s11, 35c11 106cv, 33s13, 35s13, 35c13 126cv, 33s15, 35s15,
35c15 146cv, 35s15, 35c15, 40c15, 50c15, 65c15, 70c15 146cv, 35s17, 35c17, 40c17, 50c17, 55c17,
65c17, 70c17 170cv, 35s21, 35c21, 40c21, 50c21, 65c21, 70c21 205cv, Natural power 35s14, 35c14,
40c14, 50c14, 65c14, 70c14 136cv, 33-120, 35-120 116cv, 33-140, 35-140 136cv, 33-160, 35-160 156cv,
33-180, 35-180, 52-180, 70-180 180cv, 33-210, 35-210 204cv
DAILY III Autobus/Autocar 35 s 12, 35 c 12, 40 c 12 116cv, 35 s 13, 40 c 13, 50 c 13 125cv,
35 s 14, 50 c 14 136cv
Correspond aux références :
IVECO : 42555406, 42560080, 42576680, 42561102, 42561101, 42470841
HELLA PAGID : C4064, 29123, 355005381, 8DB 355 005-381, 8DB355005381
A.B.S. : PA6023, 37298OE, 37298
ABEX : G6807
APEC braking : PAD1992, PD3102, PAD1277
ATE : 13046048622, 13046049962, 604996
AUGROS : 55668446
BELACO : BV1405
BENDIX : DB1955
BENDIX-AU : DB1955
BERAL : 2912320304044014
BORG & BECK : BBP1863
BOSCH : 0986424750, BP459
BRECK : 291230070300
BREMBO : PA6023
COMLINE : CBP01034, ADB01034
DELPHI : LP1826
FEBI BILSTEIN : 16702
FERODO : FSL4140, FVR1405, FVR4140, FSL1405
FTE : BL1869A2
GALFER : B1G10207362
GIRLING : 6115359
HI-Q : SP1843
JURATEK : JCP1405
JURID : 2912309560
MAGNETI MARELLI : C4076MM, 363700034064, C4064MM
METZGER : 1170226, 084900
MEYLE : 0252912320, 0252912320PD
MGA : 764
MINTEX : MDB2282
NK : 222368
OPTIMAL : 12436
PAGID : C4064
QUINTON HAZELL : BP1379, 7481
REMSA : 084900
ROADHOUSE : 284900
SANGSIN BRAKE : SP1843
SogefiPro : C4064MM
TEXTAR : 2912303
TRW : GDB1535
VALEO : 541705
WAGNER : WBP29123A
ZIMMERMANN : 291232001
eicher : 101590379
