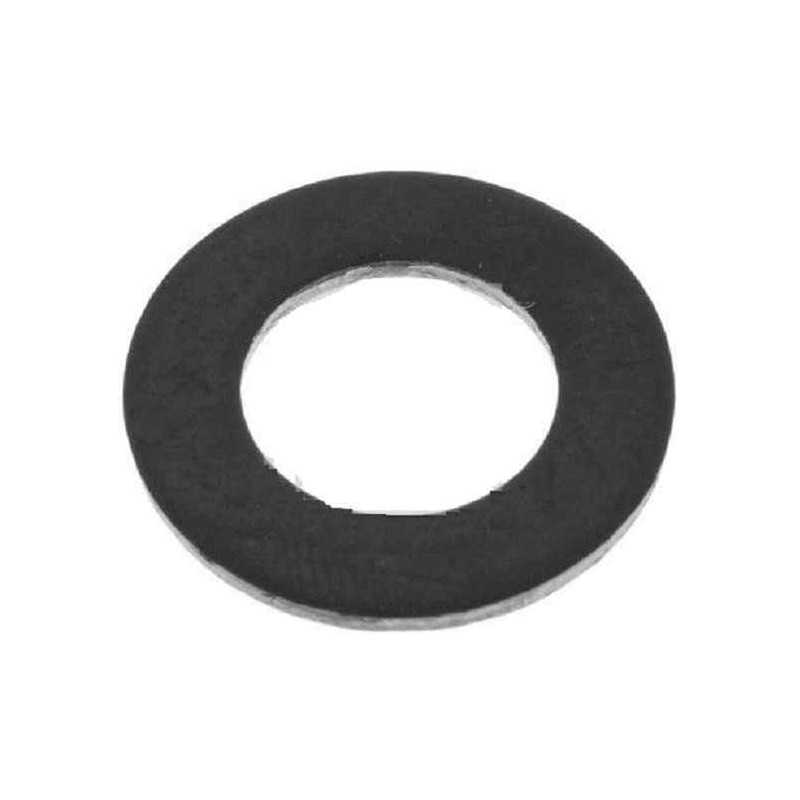

Joint de bouchon vidange Toyota Avensis Auris Carmy Carina Celica Corolla Land cuiser Prius Rav 4 Yaris
Informations techniques :
Matériau : Aluminium
Diam.ext.: 21 mm;Diam.int.: 12,3 mm;Épaisseur : 1,6 mm
Se monte sur les véhicules suivants :
TOYOTA
RAV 4 I (SXA1_) : 2.0 4WD 129cv
COROLLA Compact (_E10_) : 1.3 XLI 16V 88cv / 1.6 Si 114cv / 2.0 D 72cv
1.3 XLI 75cv / 1.3 12V 72cv / 1.8 GT 117cv / 1.8 GTi 4WD 110cv
COROLLA (_E8_) : 1.3 69cv / 1.3 75cv / 1.6 84cv / 1.6 73cv / 1.6 72cv
COROLLA (_E9_) : 1.6 90cv / 1.3 i 75cv / 1.6 i 105cv / 1.8 D 67cv
1.8 D 64cv / 1.6 i 4WD 105cv / 1.3 81cv
COROLLA Compact (_E9_) : 1.6 GTi 116cv / 1.6 90cv / 1.8 D 64cv
1.8 D 67cv / 1.3 75cv / 1.6 i 105cv
COROLLA Coupé (AE86) : 1.6 GT 16V 124cv / 1.6 16V 115cv
COROLLA Liftback (_E8_) : 1.3 69cv / 1.3 75cv / 1.6 73cv / 1.6 84cv
1.6 86cv
COROLLA Liftback (_E10_) : 1.3 XLI 88cv / 1.6 GLI 114cv / 2.0 D 72cv
1.3 12V 72cv / 1.8 GT 117cv
COROLLA Liftback (_E9_) : 1.6 90cv / 1.8 D 64cv / 1.8 D 67cv / 1.3 i 75cv
1.6 105cv / 1.6 GTI 125cv / 1.6 95cv / 1.3 81cv
COROLLA Station Wagon (_E9_) : 1.6 XLI 4WD 105cv / 1.3 75cv / 1.8 D 64cv
1.8 D 67cv / 1.6 XLI 105cv / 1.6 90cv / 1.6 95cv / 1.6 4WD 95cv
COROLLA Station Wagon (_E7_) : 1.3 65cv
COROLLA Wagon (_E10_) : 1.3 XLI 16V 88cv / 2.0 D 72cv / 1.3 XLI 75cv
1.6 Si 114cv / 1.8 16V 4WD 110cv / 1.3 12V 72cv
LAND CRUISER 80 (_J8_) : 4.2 TD 167cv / 4.2 TD 24V 170cv / 4.5 24V 205cv
4.2 TD 160cv / 4.0 156cv / 4.2 D 135cv
LAND CRUISER (PZJ7_, KZJ7_, HZJ7_, BJ7_, LJ7_, RJ7_) : 2.4 TD 86cv
2.4 TD 90cv / 3.0 TD 125cv / 4.2 D 131cv
CRESSIDA A trois volumes (RX60_) : 2.0 105cv
LITEACE Camionnette (KM2_) : 1.3 57cv
LITEACE Camionnette (CM3_V, KM3_V) : 1.5 69cv / 2.0 D 72cv
MODELL F Autobus/Autocar (CR2_, YR2_) : 2.2 98cv
STARLET (_P7_) : 1.0 54cv / 1.3 75cv / 1.5 D 54cv
STARLET (EP8_, NP8_) : 1.3 12V 75cv / 1.5 D 54cv / 1.0 54cv / 1.3 12V 75cv
MR 2 I (AW1_) : 1.6 16V 116cv / 1.6 16V 124cv
SUPRA (JZA8_) : 3.0 i Bi-Turbo 330cv
TERCEL (AL2_) : 1.5 4WD 71cv / 1.5 4WD 68cv
4 RUNNER (RN1_, VZN1_) : 3.0 Turbo-D 125cv / 3.0 143cv
CAMRY (_CV1_, _XV1_, _V1_) : 2.2 136cv
CAMRY A trois volumes (CV1_, SV1_) : 1.8 90cv / 2.0 GLI 107cv / 2.0 99cv
1.8 Turbo-D 73cv
CAMRY (_V2_) : 2.0 128cv / 2.0 Gli 16V 121cv / 2.5 V6 GXI 160cv
2.0 Turbo-D 84cv / 2.0 Turbo-D 86cv / 1.8 i 90cv
CAMRY Liftback (CV1_, SV1_) : 1.8 90cv / 1.8 Turbo-D 73cv / 2.0 99cv
CAMRY Station Wagon (_XV1_, _CV1_, _V10) : 2.2 136cv / 3.0 188cv
CAMRY Station Wagon (_V2_) : 2.0 128cv / 2.0 GLi 16V 121cv / 2.0 Turbo-D 84cv
2.0 Turbo-D 86cv / 2.5 160cv / 1.8 90cv
CARINA II A trois volumes (CT15_) : 1.6 75cv / 1.6 84cv / 1.8 GLI 101cv / 2.0 D 68cv
CARINA E A trois volumes (_T19_) : 1.6 107cv / 2.0 133cv / 2.0 GTi 16V 175cv
1.6 99cv / 1.8 i 16V 107cv / 1.6 106cv / 2.0 D 73cv / 2.0 i 126cv
2.0 TD 83cv / 1.6 16V 116cv / 2.0 GTi 158cv
CARINA E (AT19_) : 1.6 GLI 107cv / 2.0 GLI 133cv / 2.0 GTi 158cv
2.0 GTi 16V 175cv / 1.6 99cv / 1.8 107cv / 1.6 116cv / 2.0 D 73cv
2.0 i 126cv / 2.0 TD 83cv / 1.6 16V 106cv
CARINA E Sportswagon (_T19_) : 1.6 GLI 107cv / 2.0 GLI 133cv / 1.6 i 99cv
1.8 i 107cv / 2.0 D 73cv / 2.0 i 126cv / 2.0 TD 83cv / 1.6 115cv
CARINA II A trois volumes (ST17_, AT17, CT17_) : 1.6 90cv / 1.6 102cv
2.0 GLI 121cv / 1.6 98cv / 2.0 D 73cv
CARINA II (_T17_) : 1.6 90cv / 1.6 102cv / 2.0 GLI 121cv / 1.6 98cv / 2.0 D 73cv
CARINA II Station Wagon (AT17_, CT17_, ST17_) : 1.6 90cv / 1.6 102cv / 1.6 98cv
2.0 D 73cv / 2.0 121cv
CARINA II (ST151_, ST150_, AT151_) : 1.6 75cv / 1.6 84cv / 1.6 86cv
1.8 GLI 101cv / 2.0 D 69cv / 2.0 D 68cv
CELICA Coupé (_A6_) : 2.0 105cv / 2.0 120cv / 1.6 124cv
CELICA 3/5 portes (ST16_, AT16_) : 1.6 GT 16V 124cv / 2.0 GT 150cv / 1.6 GT 116cv
2.0 GT 140cv / 1.6 86cv
CELICA Coupé (AT18_, ST18_) : 1.6 STI 105cv / 2.0 GTi 156cv / 2.0 Turbo 4WD 204cv
2.0 Turbo 4WD 208cv
HIACE III Wagon (LH1_, RZH1_) : 2.0 101cv / 2.4 D 75cv / 2.4 120cv / 2.4 D 78cv
2.4 4WD 120cv / 2.4 D 4WD 75cv
CELICA (ST20_, AT20_) : 1.8 i 16V 116cv / 2.0 i 16V 175cv / 2.0 i Turbo 4WD 242cv
2.0 i 16V 170cv
CELICA Décapotable (ST16_, AT16_) : 2.0 GT 140cv / 2.0 GT 150cv
HILUX II Pick-up (_N1_, LN8_, RN5_, LN6_, YN6_, YN5_, LN5_, : 2.4 D 80cv
2.4 i 4WD 114cv / 2.4 D 4WD 79cv / 2.0 88cv / 2.2 4WD 94cv / 2.4 i 4WD 140cv
2.4 TD 4WD 90cv / 1.8 83cv / 2.4 D 79cv / 2.4 D 83cv / 2.4 D 4WD 83cv / 2.4 D 75cv
2.5 D-4D 88cv / 2.5 D-4D 4WD 102cv
CELICA Décapotable (AT18_, ST18_) : 2.0 GTi 156cv
CELICA Coupé (ST16_, AT16_) : 2.0 Turbo 4WD 185cv
CELICA (TA60, RA40, RA6_) : 2.0 XT 105cv
COROLLA FX Compact (E8B) : 1.6 GT 16V 121cv / 1.3 75cv
HIACE IV Autobus/Autocar (_H1_, _H2_) : 2.4 D 79cv / 2.4 TD 90cv / 2.4 115cv
2.4 4WD 116cv / 2.7 143cv / 2.4 TD 4WD 90cv / 2.7 4WD 143cv / 2.4 D 75cv
2.5 D-4D 88cv / 2.5 D-4D 102cv / 2.7 144cv / 2.5 D-4D 95cv / 2.5 D-4D 117cv
PASEO Coupé (EL54_) : 1.5 16V 90cv
LAND CRUISER 90 (_J9_) : 3.4 i 24V 178cv / 3.0 TD 125cv / 3.0 D-4D 163cv
PICNIC (CXM1_, SXM1_) : 2.0 16V 128cv / 2.2 D 90cv / 2.0 122cv
COROLLA (_E11_) : 1.4 86cv / 1.6 Aut. 107cv / 2.0 D 72cv / 1.4 16V 97cv
1.6 16V 110cv / 2.0 D-4D 90cv
COROLLA Liftback (_E11_) : 1.6 110cv / 1.4 86cv / 1.6 Aut. 107cv / 2.0 D 72cv
1.4 97cv / 1.6 110cv / 2.0 D-4D 90cv
COROLLA Compact (_E11_) : 1.4 86cv / 1.6 110cv / 1.6 Aut. 107cv / 2.0 D 72cv
1.4 97cv / 1.6 110cv / 2.0 D-4D 90cv
CRESSIDA Station Wagon (RX6_, MX6_, LX6_) : 2.0 105cv
CELICA (AT16_, ST16_) : 2.0 150cv / 1.6 86cv / 1.6 GT 16V 124cv
HIACE II Camionnette (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) : 1.8 79cv / 2.0 88cv
LITEACE Autobus/Autocar (CM30_G, KM30_G) : 1.5 69cv / 1.5 71cv / 2.0 D 72cv
CELICA Décapotable (AT20_, ST20_) : 2.0 i 16V 170cv
HIACE III Camionnette (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) : 2.4 D 75cv
2.0 101cv / 2.4 120cv / 2.4 4WD 120cv / 2.4 D 4WD 75cv
AVENSIS (AZT22_, ZZT22_) : 1.6 101cv / 1.6 110cv / 1.8 110cv / 2.0 128cv
2.0 TD 90cv / 2.0 D-4D 110cv / 1.6 VVT-i 110cv / 1.8 VVT-i 129cv / 2.0 VVT-i 150cv
AVENSIS Station Wagon (AT22_, ZZT22_) : 1.6 101cv / 1.6 110cv / 1.8 110cv
2.0 128cv / 2.0 TD 90cv / 2.0 D-4D 110cv / 1.6 VVT-i 110cv / 2.0 VVT-i 150cv
1.8 VVT-i 129cv / 2.0 D 115cv / 2.0 D 82cv
CAMRY (MCV2_, MXV2_) : 3.0 24V 190cv / 2.2 131cv / 2.2 126cv / 3.0 V6 184cv
PREVIA (TCR2_, TCR1_) : 2.4 132cv / 2.4 4WD 132cv
COROLLA (_E10_) : 1.3 XLI 16V 88cv / 1.3 XLI 75cv / 1.6 Si 114cv / 2.0 D 72cv
1.3 12V 72cv / 1.6 115cv
AVENSIS Liftback (AT22_, ST22_) : 1.6 101cv / 1.6 110cv / 1.8 110cv / 2.0 128cv
2.0 TD 90cv / 2.0 D-4D 110cv / 1.6 VVT-i 110cv / 1.8 VVT-i 129cv / 2.0 VVT-i 150cv
2.0 D 115cv
LAND CRUISER 100 (FZJ1_, UZJ1_) : 4.2 TD 204cv
RAV 4 I Cabrio (SXA1_) : 2.0 16V 4WD 129cv
PASEO Décapotable (EL54_) : 1.5 90cv
LAND CRUISER Hardtop (_J7_) : 2.4 TD 90cv / 3.0 TD 125cv / 4.2 D 167cv
COROLLA Wagon (__E11_) : 1.4 86cv / 1.6 110cv / 1.6 Aut. 107cv / 1.8 4WD 110cv
2.0 D 72cv / 1.4 16V 97cv / 1.6 16V 110cv / 2.0 D-4D 90cv
MR 2 II (SW2_) : 2.0 16V 156cv / 2.0 16V 175cv / 2.0 16V 170cv
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) : 2.0 88cv / 1.8 79cv
STARLET (EP9_) : 1.3 75cv
LAND CRUISER (_J6_) : 4.0 156cv / 4.0 137cv
YARIS (SCP1_, NLP1_, NCP1_) : 1.0 68cv / 1.3 86cv / 1.5 106cv / 1.4 D-4D 75cv
1.3 87cv / 1.5 105cv
HIACE IV Camionnette (LXH1_, RZH1_, LH1_) : 2.4 116cv / 2.4 D 79cv / 2.4 TD 90cv
2.4 4WD 116cv / 2.7 143cv / 2.4 TD 4WD 90cv / 2.7 4WD 144cv / 2.5 D-4D 88cv
2.5 D-4D 102cv / 2.5 D-4D 4WD 102cv / 2.5 D-4D 117cv / 2.5 D-4D 4WD 117cv
YARIS VERSO (NLP2_, NCP2_) : 1.3 86cv / 1.5 106cv / 1.4 D-4D 75cv / 1.3 84cv / 1.5 105cv
CELICA (ZZT23_) : 1.8 16V VT-i 143cv / 1.8 16V TS 192cv
MR III (ZZW3_) : 1.8 16V VT-i 140cv
PREVIA (MCR3_, ACR3_, CLR3_) : 2.4 156cv / 2.0 D-4D 116cv
RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_) : 1.8 VVTi 125cv / 2.0 VVTi 4WD 150cv
2.0 D-4D 4WD 116cv
PRIUS A trois volumes (NHW11_) : 1.5 Hybrid 72cv
LITEACE Autobus/Autocar (_R2_LG) : 1.5 71cv / 2.0 D 72cv / 2.2 98cv
LITEACE Camionnette (_R2__V) : 1.5 71cv / 2.2 98cv / 2.0 D 69cv
AVENSIS VERSO (_CLM2_, _ACM2_) : 2.0 VVT-i 150cv / 2.0 D-4D 116cv
CAMRY (MCV3_, ACV3_, _XV3_) : 2.4 152cv / 3.0 186cv
COROLLA (CDE12_, ZZE12_, NDE12_, ZDE12_) : 1.4 VVT-i 97cv / 1.6 VVT-i 110cv
1.8 VVTL-i TS 192cv / 2.0 D-4D 90cv / 2.0 D-4D 110cv / 2.0 D-4D 116cv / 1.4 D 90cv
1.8 VVTL-i TS 224cv
COROLLA A trois volumes (_E12J_, _E12T_) : 1.4 VVT-i 97cv / 1.6 VVT-i 110cv
2.0 D-4D 90cv / 1.4 D-4D 90cv / 2.0 D-4D 116cv
COROLLA Break (_E12J_, _E12T_) : 1.4 VVT-i 97cv / 1.6 VVT-i 110cv / 2.0 D-4D 90cv
2.0 D-4D 116cv / 1.4 D4-D 90cv
COROLLA Verso (ZDE12_, CDE12_) : 1.6 VVT-i 110cv / 2.0 D-4D 90cv / 1.8 VVT-i 135cv
AVENSIS A trois volumes (CDT25_) : 1.8 129cv / 2.0 147cv / 2.0 D-4D 116cv / 2.4 170cv
2.4 163cv / 1.6 VVT-i 110cv / 2.2 D-4D 150cv / 2.2 D-CAT 177cv / 2.0 D-4D 126cv
2.0 VVTi 155cv
AVENSIS Break (AZT25_, CDT25_, ZZT25_) : 1.8 129cv / 2.0 147cv / 2.0 D-4D 116cv
2.4 170cv / 2.4 163cv / 1.6 VVT-i 110cv / 2.2 D-4D 150cv / 2.2 D-CAT 177cv / 2.0 D-4D 126cv
LAND CRUISER (LJ12_, KZJ12_, TRJ12_, KDJ12_, GRJ12_) : 4.0 249cv / 3.0 D-4D 163cv
3.0 D-4D 166cv / 3.0 D-4D 173cv / 3.0 D-4D 125cv
4 RUNNER (KZN18_, VZN18_, RZN18_) : 3.0 Turbo-D 125cv
AVENSIS (T25_) : 1.8 129cv / 2.0 147cv / 2.4 170cv / 2.0 D-4D 116cv / 2.4 163cv
1.6 VVT-i 110cv / 2.2 D-4D 150cv / 2.2 D-CAT 177cv / 2.0 D-4D 126cv
PRIUS 3/5 portes (NHW20_) : 1.5 78cv
COROLLA Verso (ZER_, ZZE12_, R1_) : 1.6 110cv / 1.8 129cv / 2.0 D-4D 116cv
2.2 D-4D 177cv / 2.2 D-4D 136cv
YARIS (SCP9_, NSP9_, KSP9_, NCP9_, ZSP9_) : 1.4 D-4D 90cv / 1.8 VVTi 133cv
RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) : 2.0 VVT-i 4WD 152cv / 2.2 D-4D 4WD 136cv
2.2 D-CAT 4WD 177cv
AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) : 2.2 D 177cv / 2.0 D-4D 126cv
1.4 D-4D 90cv / 1.6 VVTi 124cv / 1.4 VVTi 97cv
HILUX III Pick-up (KUN_, TGN_, LAN_, GGN_) : 2.5 D 4WD 102cv / 2.5 D-4D 4WD 120cv
2.5 D-4D 120cv / 3.0 D-4D 4WD 171cv / 2.5 D-4D 102cv
TERCEL Break (AL2_) : 1.5 70cv
LAND CRUISER 200 (GRJ2_, UZJ2_, VDJ2_) : 4.5 D V8 286cv
AURIS (ZWE18_, NZE18_, ZRE18_) : 1.8 Hybrid 99cv
Correspond aux références :
FEBI BILSTEIN : 30263
DAIHATSU : 90044-30281
LEXUS : 90430-12031, 90080-43037
SCION : 90430-12031, 90080-43037
TOYOTA : 90430-12031, 90080-43037
AJUSA : 00246100
ASHUKI : T001-51, T001-52
BLUE PRINT : ADT30102
CORTECO : 005568S
ELRING : 327.115, 473.500
NPS : M129A03
SWAG : 81 93 0263
TOPRAN : 502 936
VAICO : V20-2423
WILMINK GROUP : WG1193019, WG1431997, WG1446639, WG1219870
